Welding Defects Guide: Identify, Prevent, and Fix Common Issues

Last Updated: March 14, 2026

Welding is a process that joins two or more pieces of metal using heat, pressure, or both. It is widely used in construction, manufacturing, automotive, and many other industries. But even skilled welders can face problems known as welding defects. These flaws can reduce the strength, appearance, or safety of welded joints. Understanding these defects is important for anyone working with welding—whether you are a student, a beginner welder, or a quality inspector. This guide explains the most common welding defects, their causes, how to prevent them, and the impact they can have on projects.

What Are Welding Defects?

A welding defect is any irregularity or flaw in the weld that does not meet acceptable standards. Defects may be visible on the surface or hidden inside the metal. Some defects are easy to fix, while others can lead to serious problems, including failures in structures or machines. Not all imperfections are considered defects—only those that can harm the function, strength, or safety of the weld.

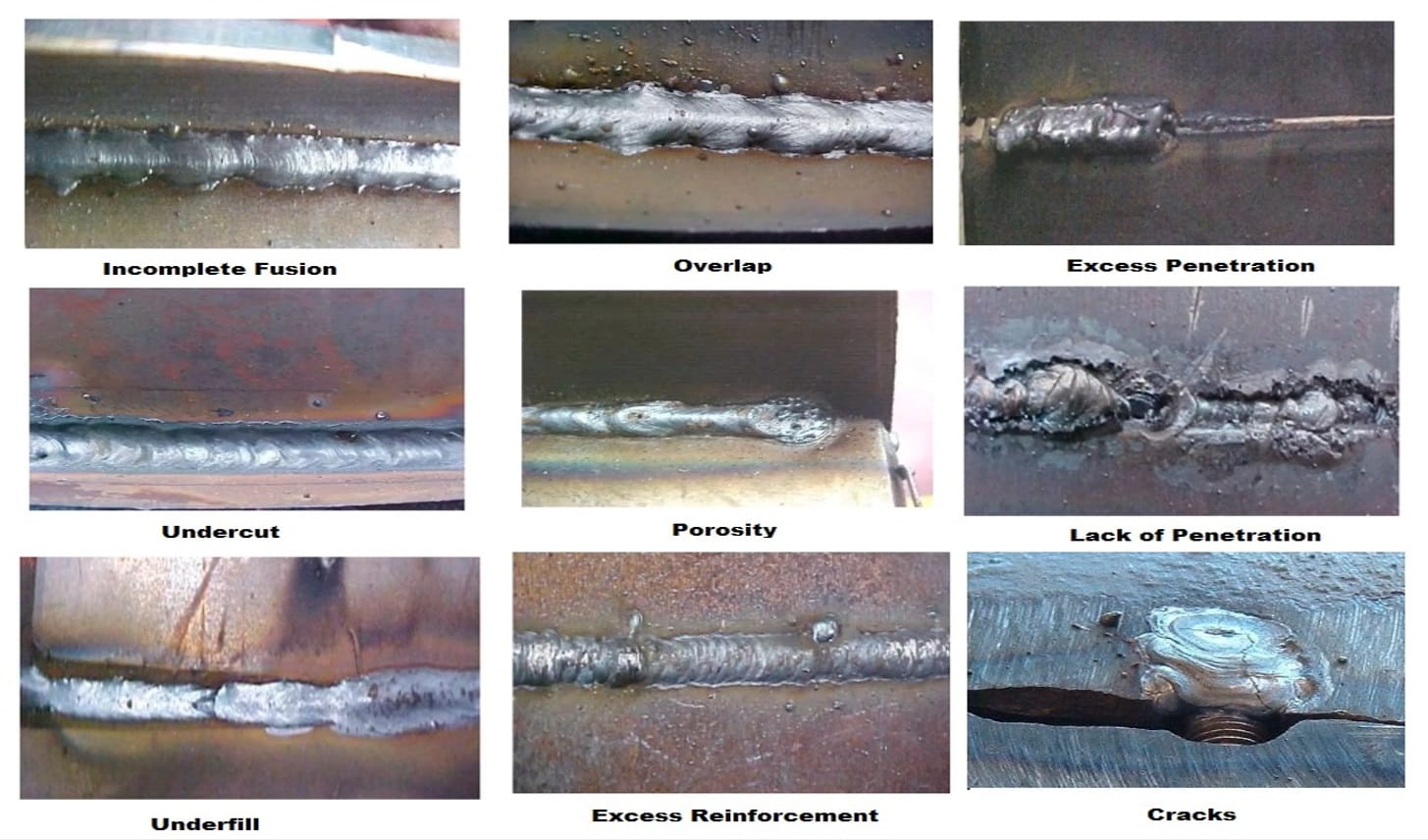

Common Types Of Welding Defects

There are many types of welding defects, each with unique causes and solutions. Here are the most important ones you should know:

1. Porosity

Porosity happens when gas gets trapped in the weld as it cools, leaving small holes or bubbles inside or on the surface. These holes can weaken the weld and may lead to cracks.

Causes:

• Dirty or rusty base metal
• Moisture in electrodes or on surfaces
• Incorrect shielding gas flow

Prevention:

• Clean all surfaces before welding
• Store electrodes in a dry place
• Use the right amount of shielding gas

Example: Porosity often appears as pinholes on MIG or TIG welds, especially in humid environments.

2. Cracks

Cracks are among the most dangerous welding defects. They can appear on the surface or within the weld, and they often grow over time. There are several types of cracks:

• Hot cracks: Form while the weld is still hot
• Cold cracks: Occur after the weld has cooled

Causes:

• High cooling rates
• Wrong filler material
• High levels of stress in the joint

Prevention:

• Use proper preheat and post-weld heat treatment
• Choose correct filler materials
• Avoid rapid cooling

Insight: Not all cracks are visible to the naked eye. Non-destructive testing is needed to find hidden cracks.

3. Undercut

Undercut is a groove that forms at the edge of the weld, usually along the base metal. It reduces the thickness of the metal and weakens the joint.

Causes:

• Too high welding current
• Incorrect welding angle
• Fast travel speed

Prevention:

• Use correct current settings
• Maintain proper torch angle
• Control travel speed

Tip: Even a small undercut can reduce fatigue strength by up to 30%.

4. Incomplete Fusion

Incomplete fusion means the weld metal does not fully join with the base metal or previous weld pass. This leaves gaps that reduce strength.

Causes:

• Low welding temperature
• Poor technique
• Contaminated surfaces

Prevention:

• Increase temperature or current
• Clean surfaces properly
• Use correct welding method

Example: Incomplete fusion is common in thick plates welded with low amperage.

5. Incomplete Penetration

Incomplete penetration occurs when the weld metal does not reach the root of the joint, leaving an unjoined section.

Causes:

• Poor joint preparation
• Low welding current
• Wrong electrode size

Prevention:

• Prepare joints carefully
• Use enough current
• Select suitable electrode

Insight: This defect is critical in pressure vessels, where leaks or bursts can happen.

6. Slag Inclusion

Slag is a byproduct of welding with flux. If slag gets trapped in the weld, it creates slag inclusion, which weakens the joint.

Causes:

• Not cleaning between weld passes
• Incorrect welding angle
• Slow travel speed

Prevention:

• Remove slag after each pass
• Use proper technique
• Control speed

Fact: Slag inclusions are not always visible and may require X-ray or ultrasonic testing to detect.

7. Spatter

Spatter refers to small drops of molten metal thrown out of the weld pool. While usually a cosmetic issue, too much spatter can cause weak spots.

Causes:

• High welding current
• Poor shielding gas
• Wrong polarity

Prevention:

• Adjust current
• Use correct shielding gas
• Set correct polarity

Tip: Anti-spatter sprays can help, but do not replace proper settings.

8. Overlap

Overlap occurs when weld metal flows over the base metal but does not fuse to it. This forms a weak connection.

Causes:

• Low travel speed
• Too large electrode
• Wrong welding angle

Prevention:

• Increase travel speed
• Use suitable electrode
• Adjust torch angle

Example: Overlap is common in fillet welds made with large electrodes.

9. Distortion

Distortion is the warping or bending of metal due to uneven heating and cooling during welding.

Causes:

• Excessive heat input
• Poor joint design
• Lack of clamps or fixtures

Prevention:

• Use balanced welding sequence
• Control heat input
• Use fixtures

Insight: Planning the weld sequence can reduce distortion, saving time and money on repairs.

10. Burn-through

Burn-through happens when the weld pool melts through the base metal, creating holes.

Causes:

• Thin base metal
• High current
• Slow travel speed

Prevention:

• Use lower current
• Increase travel speed
• Choose correct electrode

Tip: Backing bars can prevent burn-through on thin materials.

Credit: materials-testing.blogspot.com

Internal Vs. External Defects

Welding defects are classified as internal (inside the weld) or external (on the surface). Internal defects are harder to see and often need special tests, while external defects are usually visible.

Non-obvious insight: Many beginners only check for surface defects, missing internal flaws that are more dangerous.

Causes Of Welding Defects

Understanding what causes welding defects is key to preventing them. Common causes include:

• Improper welding parameters – Using the wrong current, voltage, or speed.
• Poor joint preparation – Dirty, oily, or poorly fitted joints.
• Incorrect electrode or filler material – Mismatched or low-quality materials.
• Environmental factors – Moisture, wind, or temperature changes.
• Poor welding technique – Inconsistent angle, speed, or movement.

Effects Of Welding Defects

Welding defects can lead to:

• Reduced strength – Making structures unsafe or likely to fail.
• Leaks – Especially dangerous in pipelines or pressure vessels.
• Poor appearance – Unacceptable for visible parts.
• Extra repair costs – Time and money spent on fixing or remaking welds.
• Legal or safety problems – Violating codes or causing accidents.

For example, a single crack in a bridge weld can lead to collapse under load, while porosity in a gas pipeline can cause leaks and explosions.

Detection Methods For Welding Defects

Finding welding defects is important for quality and safety. There are several ways to detect defects:

Visual Inspection

The most basic method. Inspectors look for surface defects such as undercut, cracks, or spatter. It is quick and low-cost but cannot find internal defects.

Non-destructive Testing (ndt)

These methods find hidden flaws without damaging the weld.

• Ultrasonic Testing: Sends sound waves through the weld to find cracks or voids.
• Radiographic Testing (X-ray): Shows internal defects like porosity and inclusions.
• Magnetic Particle Testing: Finds surface and near-surface cracks in ferromagnetic materials.
• Dye Penetrant Testing: Highlights surface cracks using dye.

Insight: Relying only on visual checks is risky—NDT methods are essential for critical structures.

Destructive Testing

Parts of the weld are cut and tested for strength and structure, usually in laboratory settings. This is not practical for all welds but is used for test samples.

Credit: esab.com

How To Prevent Welding Defects

Prevention is better than repair. Here are proven ways to reduce defects:

• Proper Training: Skilled welders make fewer mistakes.
• Correct Parameters: Set current, voltage, and speed according to material and process.
• Clean Surfaces: Remove rust, oil, and moisture.
• Right Materials: Use approved electrodes and fillers.
• Environmental Control: Avoid welding in rain or wind.
• Good Technique: Maintain proper angles and speeds.
• Use of Jigs and Fixtures: Hold parts in place to reduce distortion.

Non-obvious tip: Always check the welding procedure specification (WPS) for each job—ignoring it is a common mistake even among experienced welders.

Repairing Welding Defects

Not all defects mean scrapping a part. Some can be repaired:

• Grinding: Removes surface cracks or undercut.
• Re-welding: Fills incomplete penetration or fusion.
• Gouging: Removes slag inclusions before re-welding.

Caution: Repairs must be inspected after completion to ensure defects are gone.

Credit: www.weldingandwelder.com

Welding Defect Standards And Codes

Welding is controlled by standards such as:

• AWS (American Welding Society) Codes
• ASME (American Society of Mechanical Engineers) Codes
• ISO Standards

These codes define what is acceptable and what must be repaired or rejected. Following these standards is required in many industries for legal and safety reasons.

For more details, you can refer to the Wikipedia Welding page.

Frequently Asked Questions

What Is The Most Dangerous Welding Defect?

Cracks are usually the most dangerous because they can grow over time and cause sudden failure without warning. Internal cracks are especially risky because they cannot be seen easily.

How Can I Detect Internal Welding Defects?

Use non-destructive testing methods such as ultrasonic or X-ray inspection. These tests reveal hidden flaws that are not visible on the surface.

Can Welding Defects Be Repaired?

Yes, some defects can be repaired by grinding, gouging, or re-welding. However, repairs must be checked again to ensure the defect is gone and the weld meets standards.

What Is The Main Cause Of Porosity?

The main cause is trapped gas, often due to dirty metal, damp electrodes, or poor shielding gas coverage. Cleaning and proper technique can help prevent porosity.

Are All Welding Imperfections Defects?

No, only imperfections that affect strength, function, or safety are considered defects. Minor surface marks that do not weaken the weld are usually acceptable.

Welding defects are a serious challenge in metalwork, but with knowledge, skill, and attention to detail, most can be avoided or repaired. Always follow best practices and standards to keep your welds strong, safe, and reliable.
