How to Test a Battery With a Multimeter: Quick Guide for Beginners

Testing a battery is something almost everyone needs to do at some point. Whether it’s for your car, a remote control, or a solar power system, knowing if your battery still works can save time and money. Many people think battery testing is hard, but with a multimeter, it’s actually simple. You do not need to be an electrician to check a battery’s health. In this article, you’ll learn how to test different kinds of batteries using a multimeter. You’ll also discover what the results mean, common mistakes to avoid, and practical tips to help you get the most accurate readings.

What Is A Multimeter And Why Use It?

A multimeter is a device that measures electrical properties like voltage, current, and resistance. Digital multimeters are the most common today. They have a display and a dial to select what you want to measure. People use multimeters because they give fast, reliable results for many types of batteries.

The main reason to use a multimeter is accuracy. Guessing about battery health can lead to frustration, damaged devices, or wasted money on replacements. Testing with a multimeter is much better than just looking at the expiration date or guessing based on device performance.

Types Of Batteries You Can Test

Not all batteries are the same. Knowing the type of battery helps you test it the right way and understand what your results mean. Here are the most common battery types you might test:

• Alkaline batteries: AA, AAA, C, D, and 9V batteries found in remotes, toys, and flashlights.
• Lead-acid batteries: Used in cars, motorcycles, and UPS systems.
• Lithium-ion batteries: Found in phones, laptops, and power tools.
• Nickel-cadmium (NiCd) and Nickel-metal hydride (NiMH): Rechargeable batteries in cameras, cordless phones, and more.

Each battery type has a different “full charge” voltage. For example, a new AA alkaline battery should read about 1. 5V, while a 12V car battery should be close to 12. 6V when full.

Credit: www.youtube.com

What You Need Before Testing

Before you start, get these items ready:

• A digital multimeter (preferably auto-ranging, but manual works too)
• The battery to test
• Protective gloves (for car or large batteries)
• A clean, dry workspace

For safety, never touch both battery terminals with your hands, especially on large batteries. If you’re working with lead-acid or lithium-ion batteries, gloves are a good idea.

Step-by-step: How To Test A Battery With A Multimeter

Let’s break down the process in clear steps. This method works for most small batteries (AA, AAA, 9V) and larger ones (car batteries, tool batteries).

1. Set The Multimeter

Turn your multimeter’s dial to the DC voltage setting. Most batteries provide direct current (DC). For small batteries, set the range to 2V or 20V. For car batteries, use the 20V setting.

2. Identify Battery Terminals

Every battery has a positive (+) and negative (-) terminal. The positive terminal is often marked with a plus sign. The negative is marked with a minus sign.

3. Connect The Probes

• Plug the black probe into the multimeter’s COM (common) port.
• Plug the red probe into the VΩmA port.
• Touch the black probe to the battery’s negative terminal.
• Touch the red probe to the positive terminal.

4. Read The Voltage

Look at the multimeter’s display. It will show the battery’s voltage. Compare this number to the battery’s rated (new) voltage.

5. Interpret The Results

If the reading is close to the battery’s rated voltage, the battery is good. If it’s much lower, the battery is weak or dead.

Example: Testing A Aa Battery

• A new AA battery should read about 1.5V.
• If you see 1.3V or higher, it’s still useful.
• Below 1.0V means the battery is nearly empty.

Example: Testing A Car Battery

• A healthy 12V car battery should read 12.4V–12.7V at rest.
• 12.0V is weak but may still start the car.
• Below 11.8V usually means the battery is dead or failing.

Common Mistakes And How To Avoid Them

Many beginners make errors that lead to wrong readings or even damage their multimeter. Avoid these pitfalls:

• Wrong multimeter setting: If you set the dial to AC instead of DC, you’ll get the wrong number.
• Reverse probes: Touching the red probe to negative and black to positive will not harm the multimeter but can confuse you, as the reading will be negative.
• Testing while device is ON: Remove the battery from the device before testing to avoid mixed readings.
• Dirty terminals: Corrosion can block current. Clean terminals with a dry cloth before testing.
• Testing rechargeable batteries immediately after use: Wait 15-20 minutes to let the battery rest for accurate results.

How To Test Different Battery Types

Some batteries need extra steps to test them well. Here’s how to test common types:

Testing Alkaline Batteries (aa, Aaa, C, D, 9v)

• Set the multimeter to 2V or 20V DC.
• Place the black probe on the flat end (negative), red probe on the bump (positive).
• Check the display. For 1.5V batteries, 1.3V or higher is good. For 9V, above 8.5V is good.

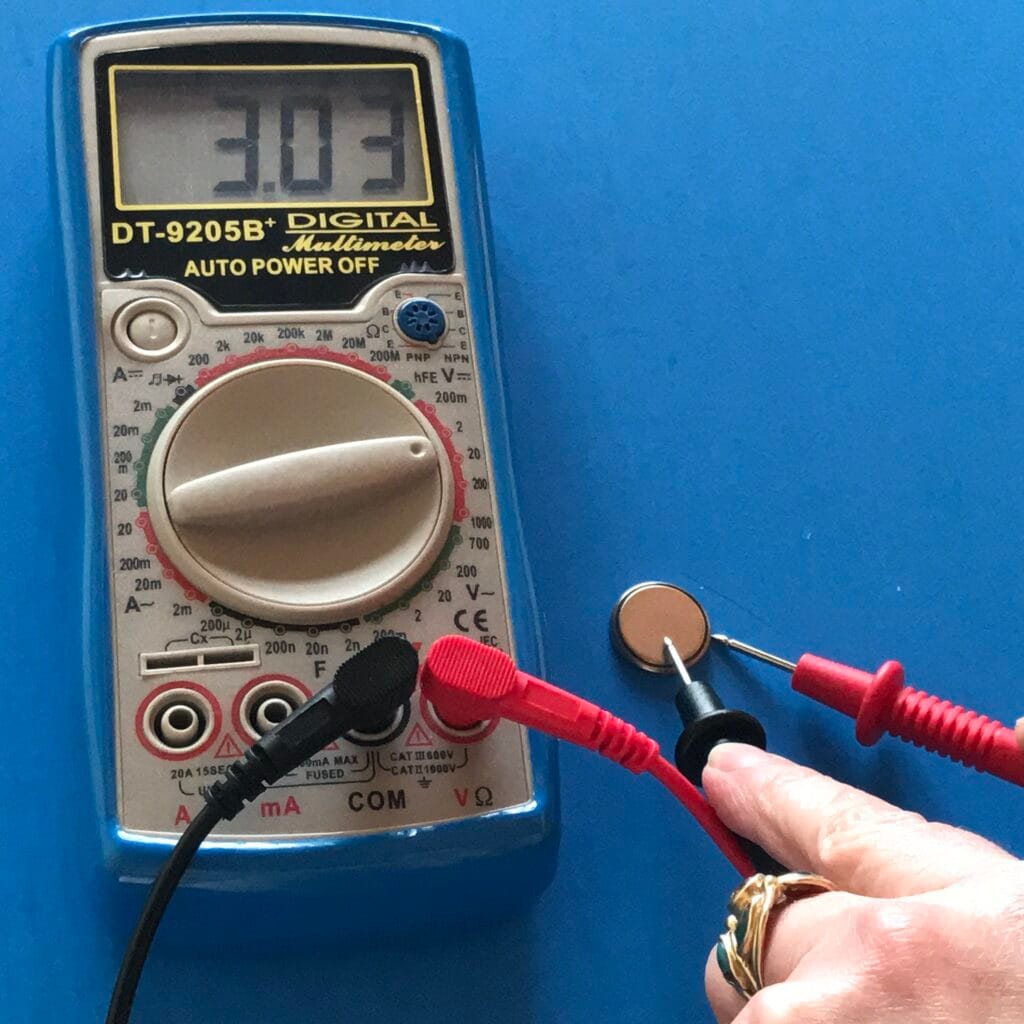

Testing Button Cell Batteries

• Use 2V DC range.
• Hold the black probe on the edge (negative), red probe on the top (positive).
• Most button cells should read close to 3V (for CR2032) or 1.5V (for LR44).

Testing Rechargeable Batteries (nicd, Nimh, Lithium-ion)

• Check the label for rated voltage (often 1.2V, 3.7V, or 7.2V).
• Set the multimeter to the next highest voltage setting.
• Place the probes as with other batteries.
• For lithium-ion, a cell below 3.0V is usually considered dead.

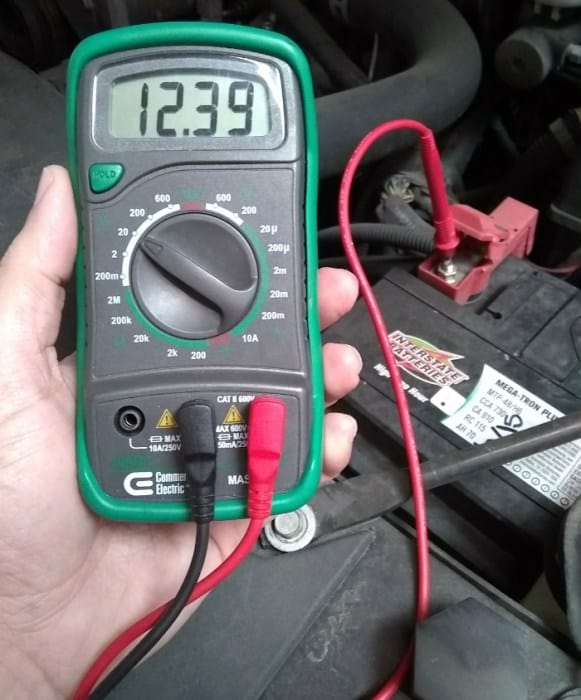

Testing Car Batteries (lead-acid)

• Use 20V DC range.
• Test with the engine OFF, after the car has been off for at least an hour.
• Healthy: 12.4V–12.7V. Weak: 12.0V–12.3V. Dead: Below 11.8V.

Car Battery Voltage And Health Comparison

What Your Results Mean

Understanding what your reading means is as important as the number itself. Here’s a quick guide for small batteries:

Advanced Tips: Load Testing

A battery can show “good” voltage but still fail in real use. This happens when it has high internal resistance—common in old batteries. To check this, you can do a load test:

• Place a small resistor (like 10 ohms) across the battery terminals while measuring voltage.
• If voltage drops sharply, the battery cannot handle a load and should be replaced.
• Never short-circuit a battery (connect terminals directly with a wire), as this is dangerous.

Credit: chibitronics.com

Practical Insights Beginners Miss

Many people only check voltage and forget about capacity. Voltage tells you about charge, but capacity (how much energy the battery holds) is also important. For example, a battery at 1.3V might only last a few minutes in a flashlight if it’s old.

Another common mistake: not checking batteries under load, as explained above. A battery can seem “good” with no load, but fail when used. Testing under load gives a more complete picture, especially for important devices.

Multimeter Features That Help

Modern digital multimeters offer features that make testing easier:

• Auto-ranging: The meter selects the correct range for you.
• Hold function: Freezes the display, so you don’t have to remember the number.
• Backlit display: Makes it easier to read in low light.

If you plan to test batteries often, consider a model with these features. They save time and reduce mistakes.

Safety Reminders

Even small batteries can leak or explode if mishandled. Always:

• Check for cracks, leaks, or bulges before testing.
• Never try to charge non-rechargeable batteries.
• Dispose of old batteries safely, following your local rules.

For more on battery safety, see this Wikipedia article.

When To Replace A Battery

If your battery shows a low voltage reading, it’s time to replace or recharge it. But also watch for these signs:

• The battery is hot, swollen, or leaking.
• Devices run poorly or not at all, even with a “good” voltage.
• The battery will not hold a charge after recharging (for rechargeables).

Don’t try to “revive” dead batteries using dangerous tricks. It’s safer and cheaper in the long run to replace them.

Credit: www.pomonaswapmeet.com

Frequently Asked Questions

How Accurate Are Multimeter Battery Tests?

Multimeter voltage tests are very accurate for showing the battery’s voltage at that moment. But they do not measure battery capacity or performance under heavy use. For a deeper check, test the battery under load.

Can I Test Rechargeable And Non-rechargeable Batteries The Same Way?

Yes, the basic steps are the same. Just make sure you know the rated voltage for your battery, as rechargeables often have a lower full-charge voltage than alkalines.

Why Does My Battery Show Good Voltage But Not Work In My Device?

This often means the battery has lost capacity. It might have high internal resistance or be old. Try a load test: if voltage drops a lot with a small resistor connected, the battery should be replaced.

Is It Safe To Test Large Batteries Like Car Batteries With A Multimeter?

Yes, if you follow safety steps: wear gloves, avoid short circuits, and only touch the probe tips to the terminals. Never touch both terminals at once, and keep metal tools away from the battery.

What Does A Negative Reading Mean On My Multimeter?

A negative reading means you have the probes reversed—red on negative and black on positive. The battery is still fine; just swap the probes to get a positive number.

Testing batteries with a multimeter is a skill that saves money and solves problems. With a few simple steps and some careful checks, you can know if your batteries are still good or need replacing. This knowledge is useful at home, in the garage, or on the job.

Remember, getting an accurate test is easy if you use the right method—and it can help you avoid many common headaches with your devices.
