Are you wondering if your motor is working properly or if it needs repair? Knowing how to test a motor with a multimeter can save you time, money, and frustration.
Whether it's a single-phase fan motor or a three-phase industrial motor, a multimeter can quickly screen for open windings, obvious shorts, and large resistance imbalance. A standard digital multimeter does not fully prove motor insulation health; for insulation-to-ground condition, use the manufacturer's manual/nameplate limits and a proper insulation resistance tester such as a megohmmeter.
Use this guide as a safe first check after the motor is fully disconnected from power. If readings are unclear, the motor is high-voltage/industrial, or insulation resistance is in question, stop and have a qualified technician test it with the right equipment.
As an Amazon Associate, I earn from qualifying purchases. This helps support the site at no extra cost to you.
Motor testing is easier with a dependable digital meter that can read resistance clearly. If your meter jumps around or lacks basic protection, see our best digital multimeters guide before doing more electrical troubleshooting.
Prepare The Motor And Multimeter
Preparing the motor and multimeter is the first step to test a motor correctly. If you do not have a reliable multimeter, we recommend the AstroAI Digital Multimeter for accurate resistance and continuity testing. This step ensures your safety and accuracy in readings. Proper preparation avoids damage to the motor and the multimeter. Follow each instruction carefully for the best results.
Disconnect Power Safely
Always turn off the motor's power source before testing. Unplug the motor or switch off the circuit breaker. Confirm no electricity flows to the motor using a voltage tester. This prevents electric shocks and protects your multimeter from damage.
Remove any connected wires or cables from the motor terminals. Keep the motor isolated to get accurate resistance readings. Never test the motor while it is connected to power.
Set Multimeter To Ohms
Turn on your multimeter and set it to the resistance mode, often marked with the Greek letter omega (?). This mode measures electrical resistance inside the motor windings. Use the lowest ohm range for precise readings if your multimeter has manual settings.
Check the multimeter leads for damage before use. Connect the leads properly to the multimeter. The red lead goes to the positive terminal, and the black lead goes to the common terminal. For hands-free testing on motor terminals, consider using alligator clip test leads that attach securely to the terminals. Now, the multimeter is ready to test the motor.

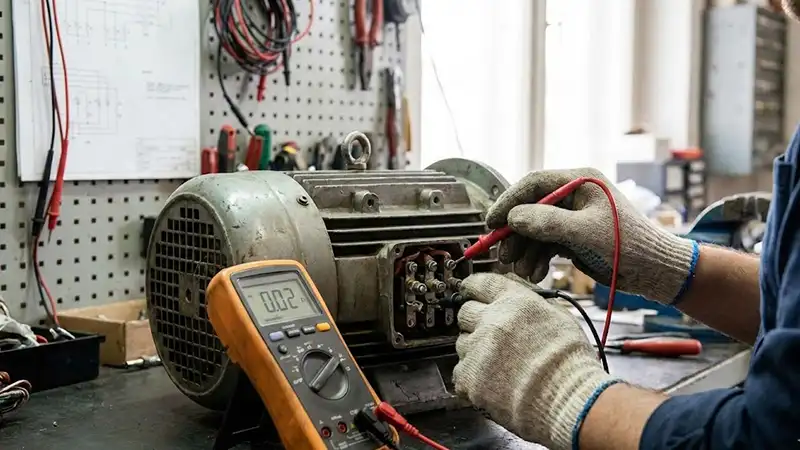

Test Motor Windings For Continuity
Testing motor windings for continuity is crucial to find faults inside the motor. This test ensures the electrical paths within the motor coils are complete. It helps detect broken wires or shorts that stop the motor from working properly.
Using a multimeter to check continuity is simple and effective. It gives clear readings that show if the motor windings are healthy or damaged. Follow the steps carefully to get accurate results.

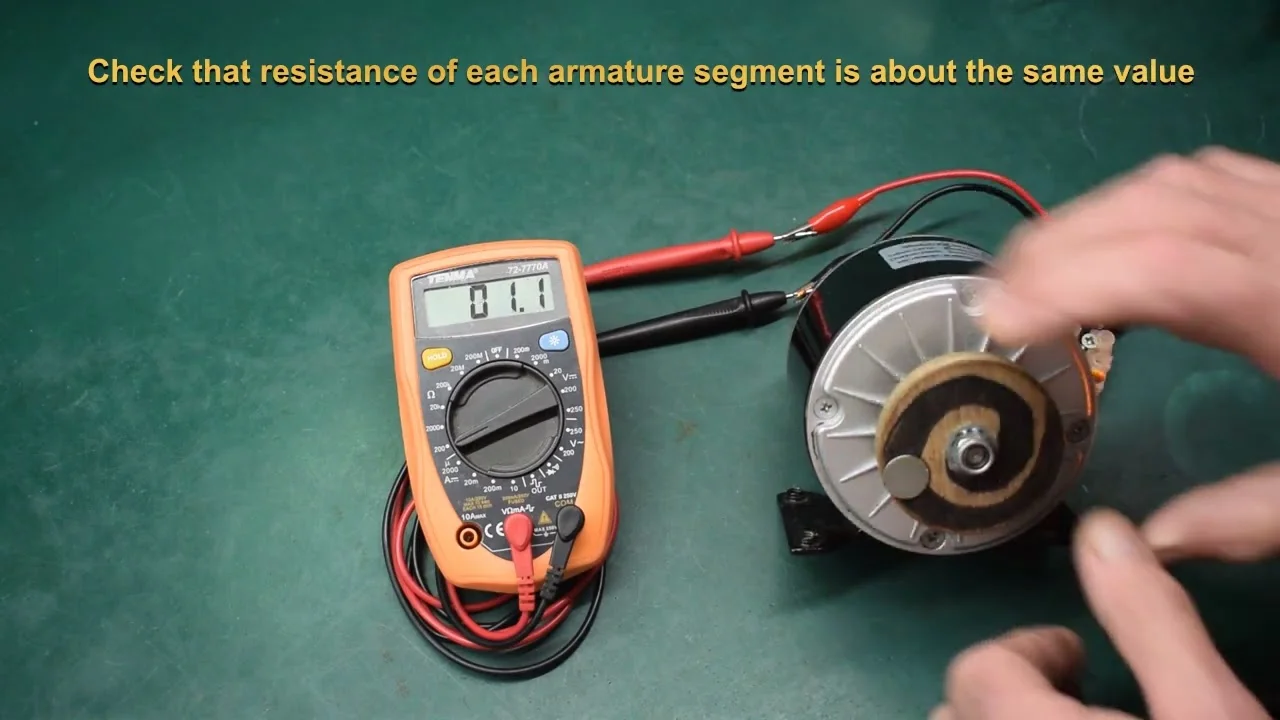

Check Resistance Between Terminals
Set your multimeter to the ohms (?) setting. Touch the probes to two motor winding terminals. The meter will show the resistance value between them. A healthy motor winding usually has a small, steady resistance.
If the meter shows “OL” or infinite resistance, it means the winding is open. Open windings have broken wires, so electricity cannot flow. If the resistance is zero or very close to zero, the winding is shorted. This indicates a direct connection that should not be there.
Test each pair of terminals this way. Note the readings for all windings to compare.
Identify Open And Short Circuits
An open circuit means the motor winding is broken inside. The multimeter shows no continuity, and the resistance reads very high or infinite. This fault prevents the motor from running.
A short circuit means two points in the winding connect wrongly. The resistance is very low or zero. Shorts cause the motor to overheat and fail quickly.
Also check for shorts to the motor frame by placing one probe on a terminal and the other on the metal housing. There should be no connection. Any reading means a short to ground, which is a serious problem.
Check For Shorts To Ground
Checking for shorts to ground is a critical step when testing a motor with a multimeter. This process ensures the motor windings do not have unintended contact with the motor frame or housing. Such shorts can cause motor failure or electrical hazards.
With a multimeter, you can screen for a direct short between a motor terminal and the metal frame. This is useful, but it is not the same as an insulation resistance test. Insulation problems caused by moisture, dirt, age, or cracked insulation may require a megohmmeter/insulation tester and the limits from the motor manual or nameplate.
Test Resistance To Motor Frame
First, set your multimeter to the ohms setting. Touch one probe to a motor terminal. Place the other probe on the clean metal frame of the motor.
Look for the resistance reading on the multimeter. A very high resistance or “OL” reading usually means the meter does not see a direct short from that terminal to the frame. It does not prove the insulation is healthy under operating voltage.
A low resistance reading can indicate a winding-to-frame short, contamination, moisture, or damaged insulation. Do not energize the motor until the cause is found. Repeat this test for each motor terminal, then confirm questionable results with the manufacturer's procedure or an insulation resistance tester.
Interpret Ground Test Results
If the multimeter shows “OL” or no continuity, it only means the meter did not detect a direct short to ground. Treat that as a quick screening result, not a final safety certificate. Insulation resistance testing is the proper next step when the motor has been wet, overheated, stored for a long time, or used in critical equipment.
If the meter shows low resistance or continuity to the frame, the motor may have a ground fault or insulation failure. Do not use the motor until it is inspected, dried/cleaned if appropriate, repaired, or replaced by a qualified person.
Testing for shorts to ground helps catch obvious faults, but safe motor operation also depends on insulation condition, supply voltage, current draw, bearings, load, and the motor's rated limits. Always disconnect power and verify absence of voltage before resistance tests.
Credit: electricaltopic.com
Test Single-phase Motors
Testing single-phase motors with a multimeter helps find motor problems fast. These motors have two windings: start and run. Knowing which winding is which makes testing easier. Checking their resistance values shows if the motor is good or damaged. Follow clear steps for accurate results.
Identify Start And Run Windings
Single-phase motors have two main windings. The start winding creates extra torque to start the motor. The run winding keeps the motor running smoothly. These windings have different wire sizes and resistance levels. Usually, the start winding has thinner wire and higher resistance. The run winding uses thicker wire with lower resistance. You can find winding labels on the motor or in its manual. If no labels exist, use a multimeter to measure resistance and identify each winding.
Measure Resistance Values
Set your multimeter to the ohms (?) setting. Disconnect power and wires from the motor. Measure resistance between winding terminals. The start winding resistance is higher, often several ohms. The run winding resistance is lower, usually less than one ohm. If the resistance reads infinite (OL), that winding is open or broken. A zero or near zero reading means a short circuit. Also, test for shorts to the motor frame. Touch one probe to a winding terminal and the other to the metal frame. A good motor shows no continuity to ground (infinite reading).
Test Three-phase Motors
Testing three-phase motors with a multimeter helps find electrical problems fast. These motors have three windings, each connected to a phase. Checking each winding ensures the motor works properly and safely.
Follow simple steps to measure resistance and spot issues like shorts or open circuits. Use your multimeter to compare readings and confirm the motor's condition. This process helps avoid costly repairs or replacements.

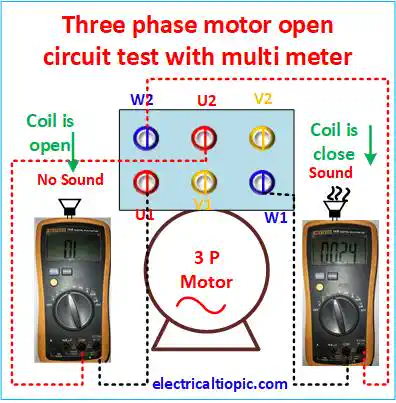

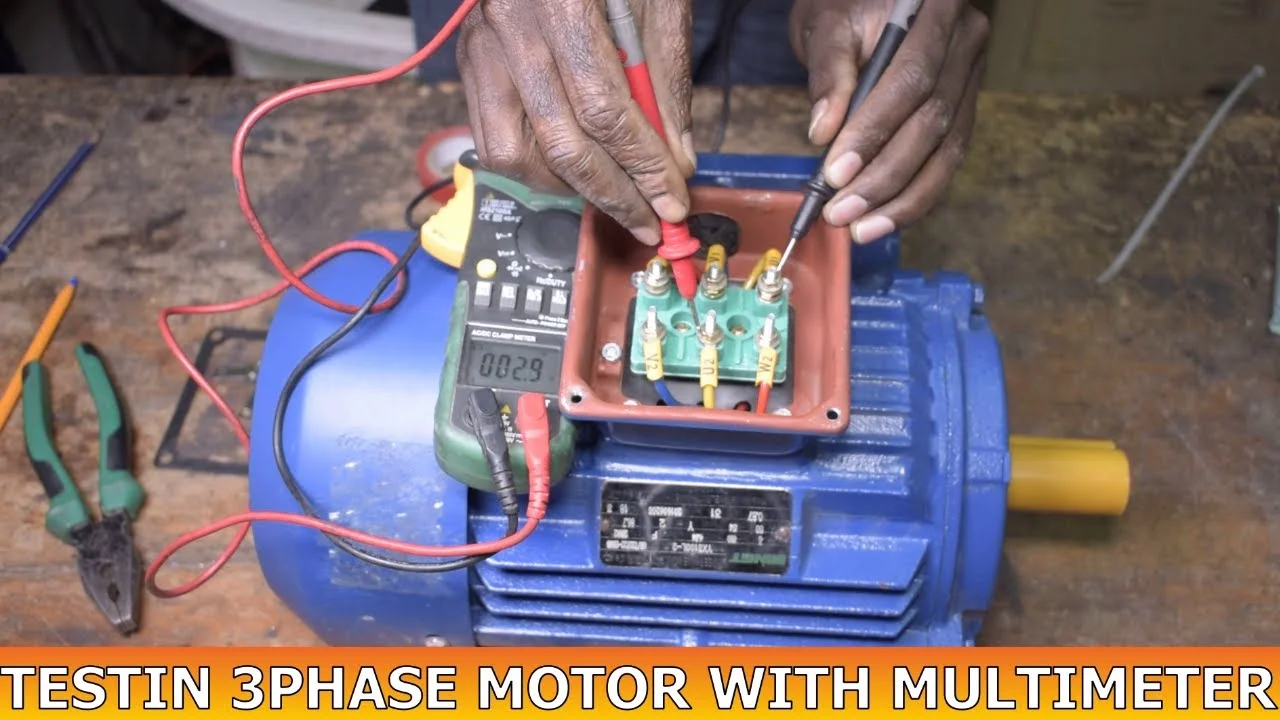

Check Each Winding Pair
